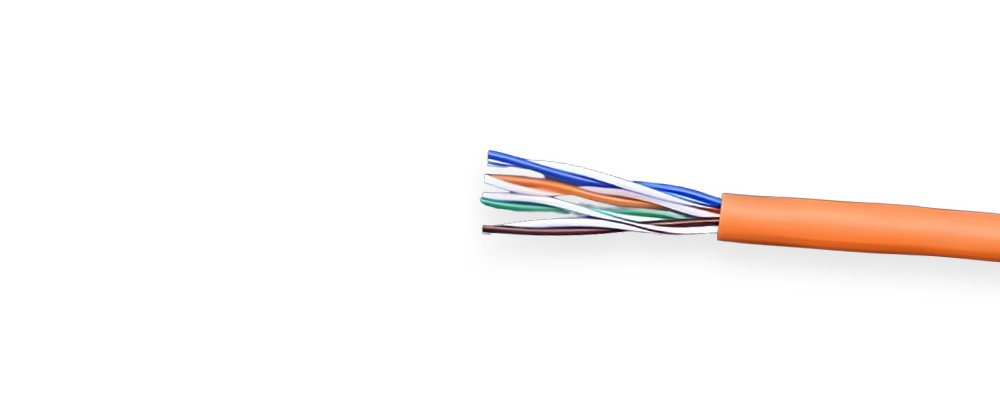

Cat 5 Cables
Cat 5 Cables
CAT5e cable which is used in a horizontal or vertical configuration, it constitutes the base of a voice, data, and network to very high rate. Our special designed cable provides headroom beyond the International specifications like TIA-568.2-D & ISO/IEC 11801 Category 5e standards.
Conductor
Solid Bare Electrolytic Grade Copper
Conductor Size
24 AWG
Insulation
Polyolefin
Insulation Size
0.920 ± 0.05 mm
Pairing
Twisted into two core
Sheath
HDPE Black
Sheathing Material
PVC/ LSZH / PE
Sheathing Color
Grey (RAL 7035) or Any as per requirement
Cable Diameter (Approx)
5.1 mm, 5.8 mm, 6.4 mm and 9.8 mm
